1000-Ton Wood Chip Pallet Hydraulic Press This cutting- […]
| Dimensions: | 1200 x 1000 x 150mm |
| Weight Capacity: | 1500 kg (static) |
| Material: | Compressed Wood Chips |
| Color: | Natural Wood |

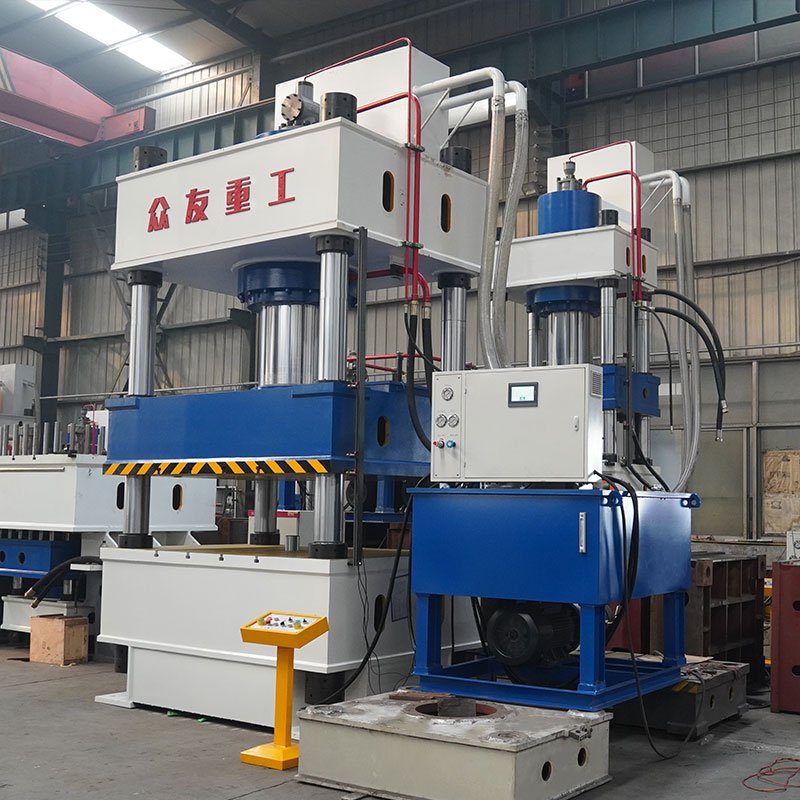

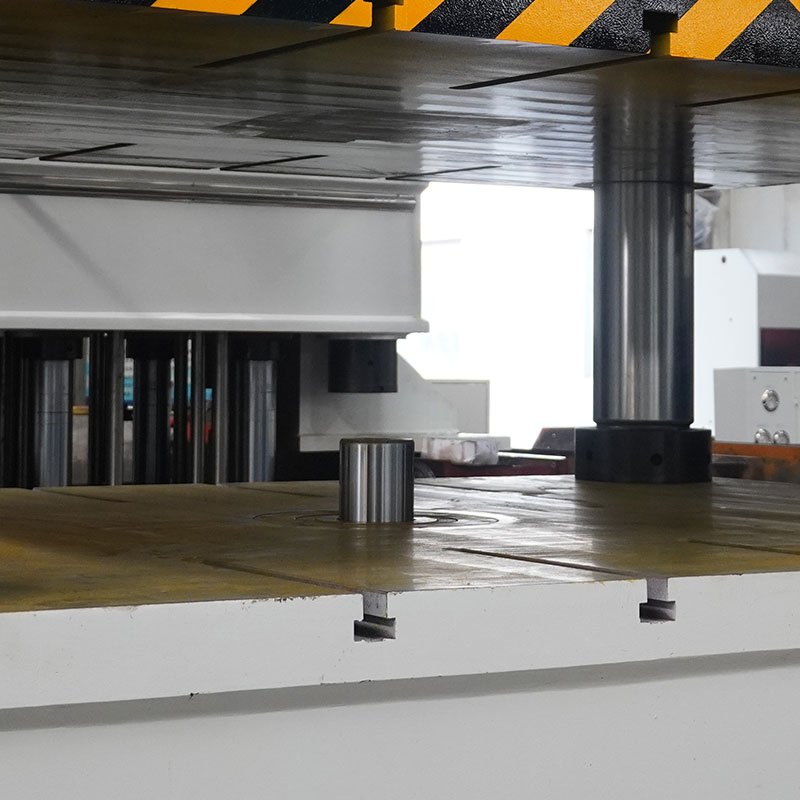

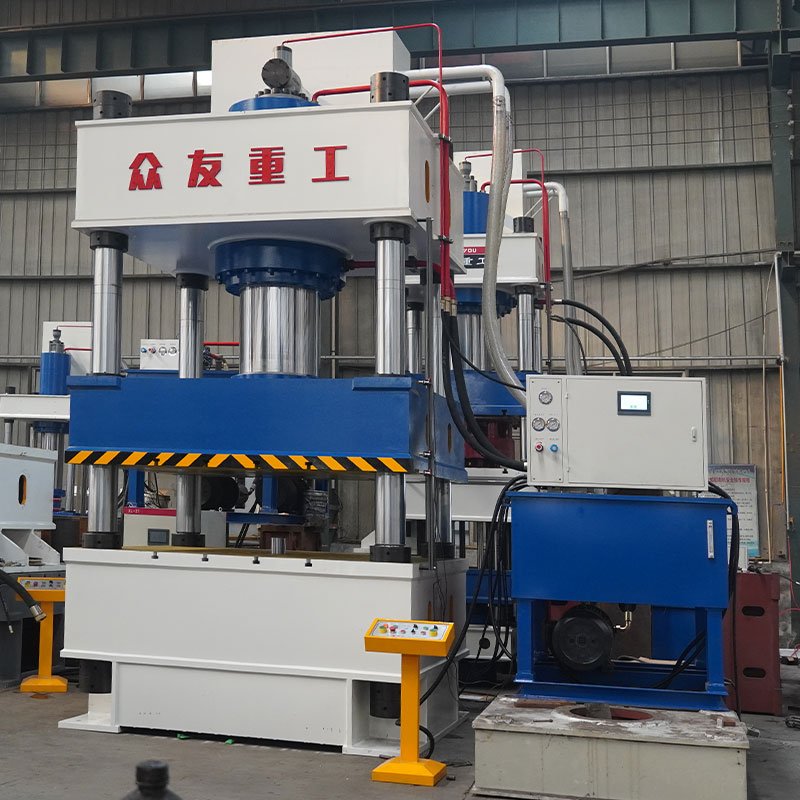

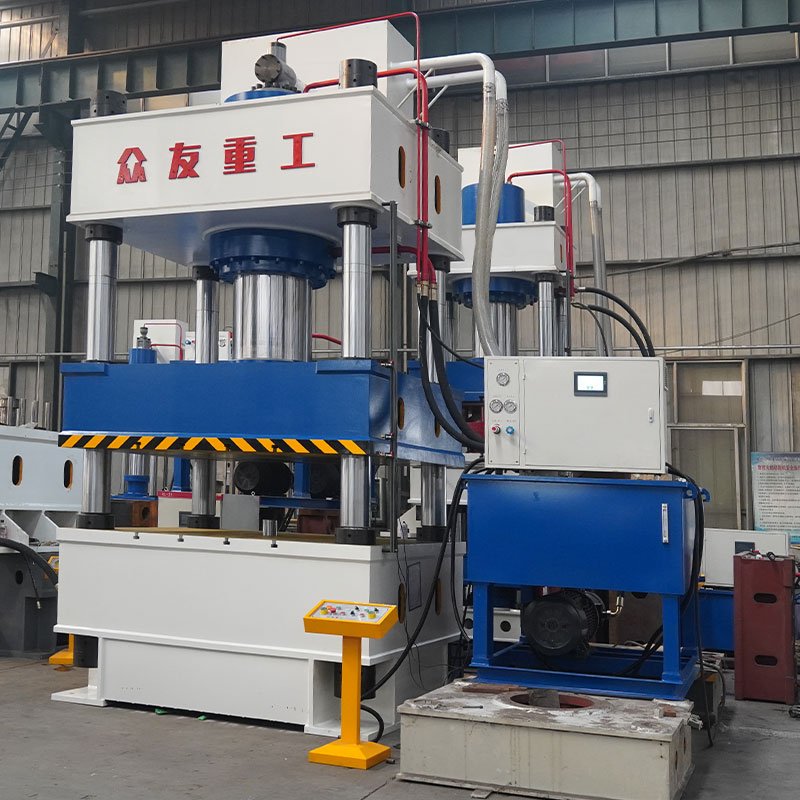

1000-Ton Wood Chip Pallet Hydraulic Press This cutting-edge equipment in biomass molding and logistics packaging is specifically designed to compress agricultural and forestry waste (such as wood chips, straw, bamboo powder, etc.) under high pressure into fully biodegradable eco-friendly pallets in a single molding process.
High-Efficiency Production Automation Integration: Configurable with fully automated feeding and palletizing systems to minimize manual intervention and enhance production continuity.
Cost Optimization & Wide Raw Material Adaptability: Supports diverse materials including wood chips, waste wood, rice straw, and plastic, reducing raw material procurement costs.
Energy Consumption Control: High-efficiency hydraulic system combined with servo control minimizes energy waste.
Product Quality & Surface Finish: The molding process ensures a smooth pallet surface, minimizing subsequent processing steps.
Typical Application Scenarios
Logistics Industry: Produces standardized pallets suitable for warehousing and transportation.
Environmental Enterprises: Transforms waste materials like wood chips and straw into high-value-added products.
Export Packaging: Manufactures molded pallets compliant with international standards to meet foreign trade requirements.
I. Raw material preparation Choose suitable raw materials, such as wood shavings, plant straw and so on. Preliminary processing of raw materials, including cutting, chipping and other steps for subsequent crushing and mixing.
2, crushing and mixing The preliminary processed raw materials are crushed to the appropriate particle size and automatically proportioned for transfer as required. Mixing of the proportioned raw materials with adhesives. The mixing process should ensure that the adhesive is evenly distributed in the raw material to improve the strength and stability of the pallet.
3, drying and cooling The mixed raw materials are dried at high temperature to reduce their moisture content to ensure the stability and quality of the pallet in the moulding process. After drying, the raw material should be cooled for subsequent moulding operations.
4.Moulding The dried and cooled mix is conveyed to the laying machine in set quantities. The spreader spreads the mix evenly in the mould in preparation for moulding. A hydraulic press for wood chip pallets is used to apply high temperature and pressure to the mix in the mould. The hydraulic press provides a strong compressive force that binds and cures the mix in the mould. After moulding, the pallet is automatically removed from the mould.
Molded pallet hot press is a new type of molded pallet production equipment, the use of hot pressing process of one-time molding, pallet hydraulic press has the advantages of high efficiency, one-time molding, material saving, high strength, environmental protection and energy saving. Depending on the size of the pressed pallet flower pattern, can be configured with different molds, specific can consult customer service.
