Wood Chip Pallet Hydraulic Press Utilizing high pressur […]
| Dimensions: | 1200 x 1000 x 150mm |
| Weight Capacity: | 1500 kg (static) |
| Material: | Compressed Wood Chips |
| Color: | Natural Wood |
Wood Chip Pallet Hydraulic Press Utilizing high pressure from the hydraulic system, this press injects a mixture of pre-treated wood chips and binder into the mold. Under high temperature and pressure, the wood chips and binder solidify into a single unit, forming structurally stable wood chip pallets. The entire process includes steps such as pressurization, pressure limitation, pressure maintenance, timing, depressurization, and demolding. It features a high degree of automation and simple operation.

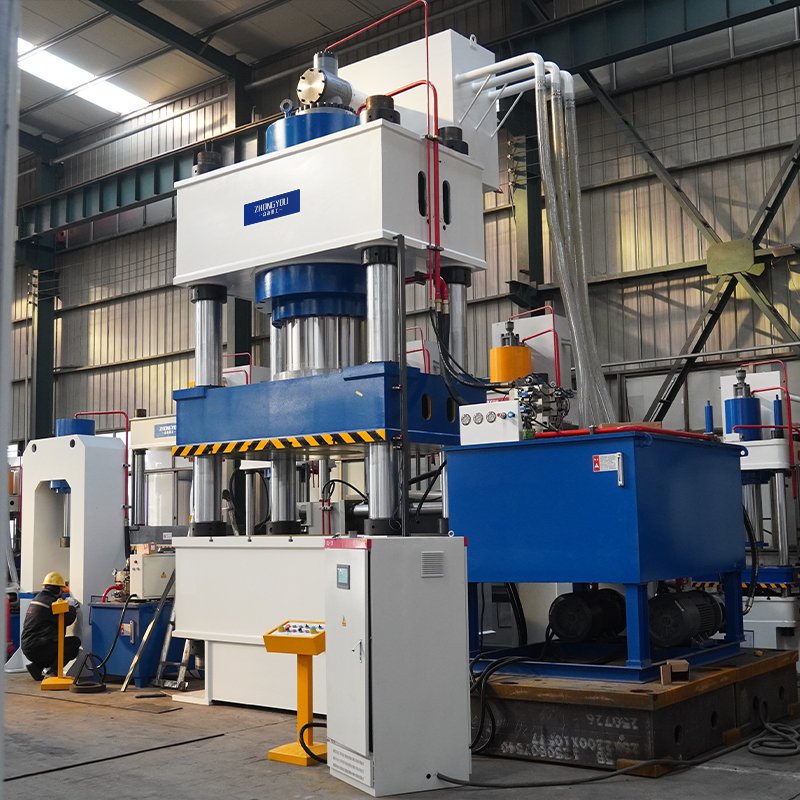

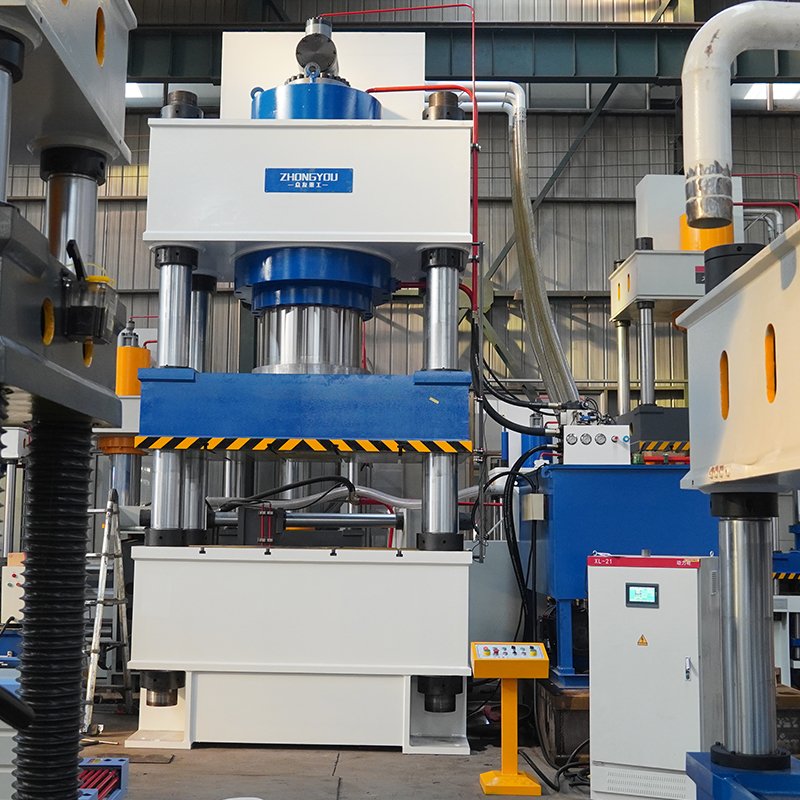

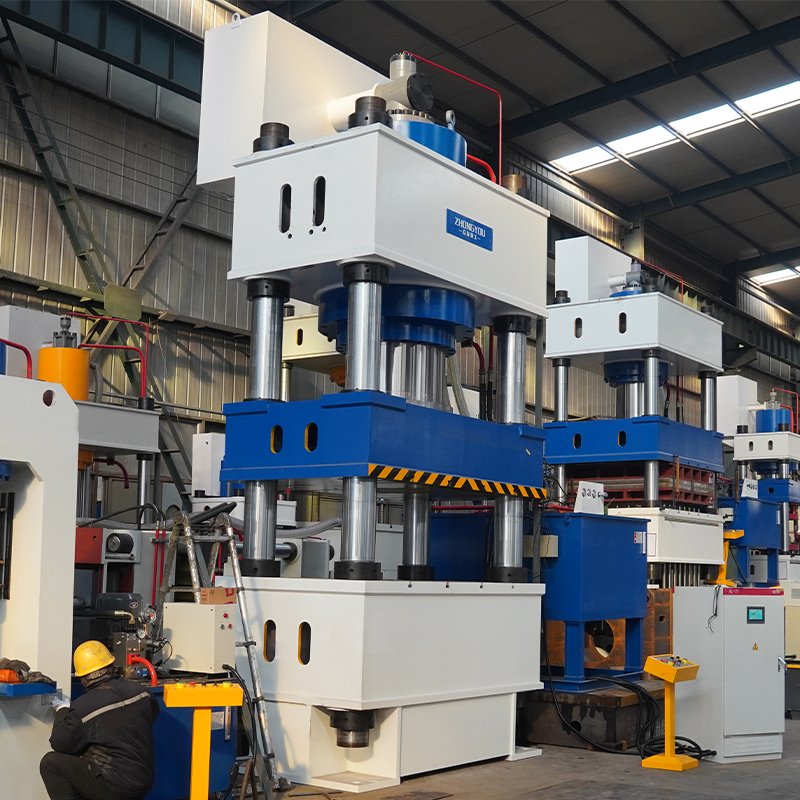

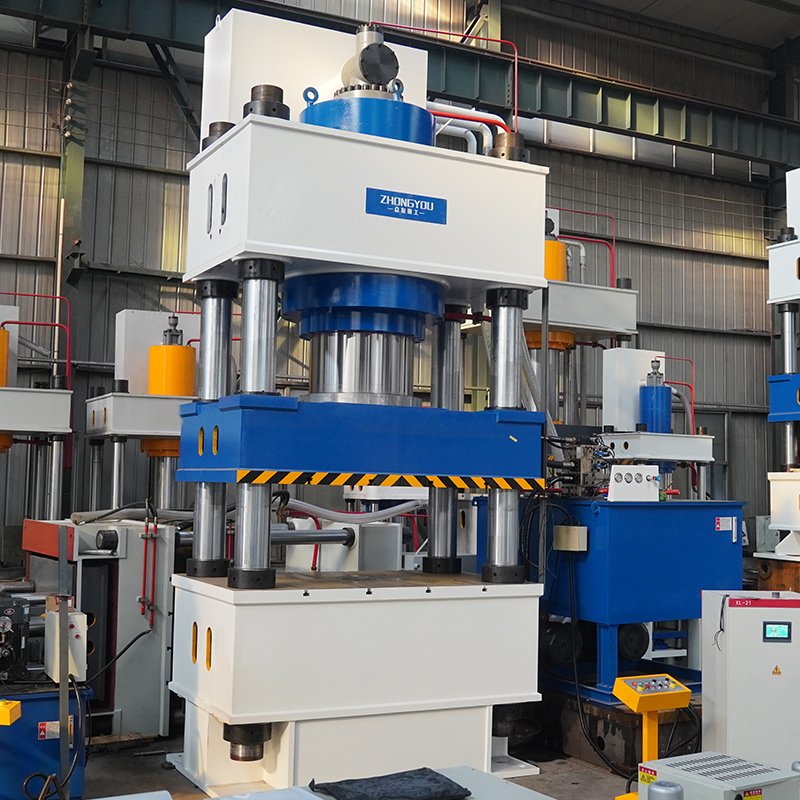

Four-Column Hydraulic Press
Features: Simple structure, economical and practical, suitable for pallet production with lower precision requirements.
Advantages: Lower cost, higher market share, ideal for small to medium-scale production.
I. Raw material preparation Choose suitable raw materials, such as wood shavings, plant straw and so on. Preliminary processing of raw materials, including cutting, chipping and other steps for subsequent crushing and mixing.
2, crushing and mixing The preliminary processed raw materials are crushed to the appropriate particle size and automatically proportioned for transfer as required. Mixing of the proportioned raw materials with adhesives. The mixing process should ensure that the adhesive is evenly distributed in the raw material to improve the strength and stability of the pallet.
3, drying and cooling The mixed raw materials are dried at high temperature to reduce their moisture content to ensure the stability and quality of the pallet in the moulding process. After drying, the raw material should be cooled for subsequent moulding operations.
4.Moulding The dried and cooled mix is conveyed to the laying machine in set quantities. The spreader spreads the mix evenly in the mould in preparation for moulding. A hydraulic press for wood chip pallets is used to apply high temperature and pressure to the mix in the mould. The hydraulic press provides a strong compressive force that binds and cures the mix in the mould. After moulding, the pallet is automatically removed from the mould.
Molded pallet hot press is a new type of molded pallet production equipment, the use of hot pressing process of one-time molding, pallet hydraulic press has the advantages of high efficiency, one-time molding, material saving, high strength, environmental protection and energy saving. Depending on the size of the pressed pallet flower pattern, can be configured with different molds, specific can consult customer service.
