Sawdust Pallet Hydraulic Press” is a special equi […]

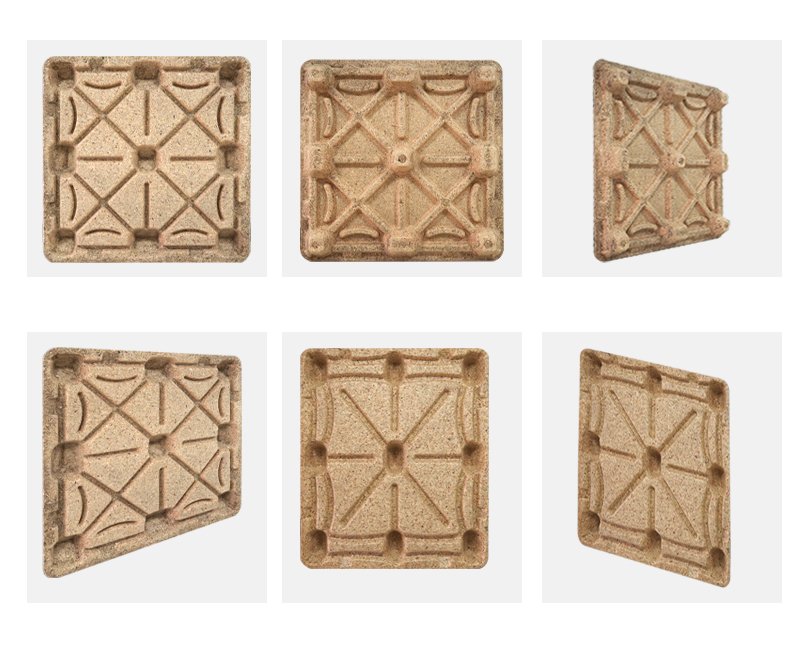

| Dimensions: | 1200 x 1000 x 150mm |
| Weight Capacity: | 1500 kg (static) |
| Material: | Compressed Wood Chips |
| Color: | Natural Wood |

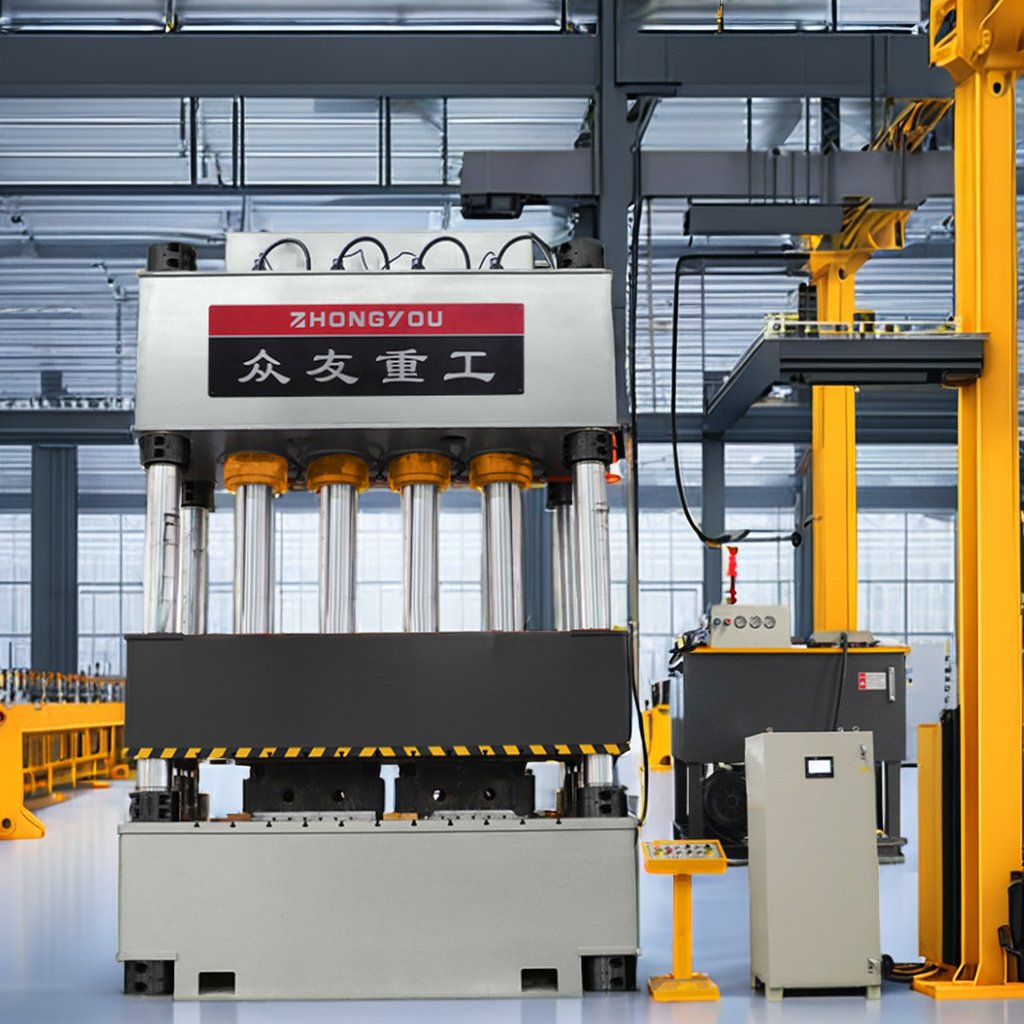

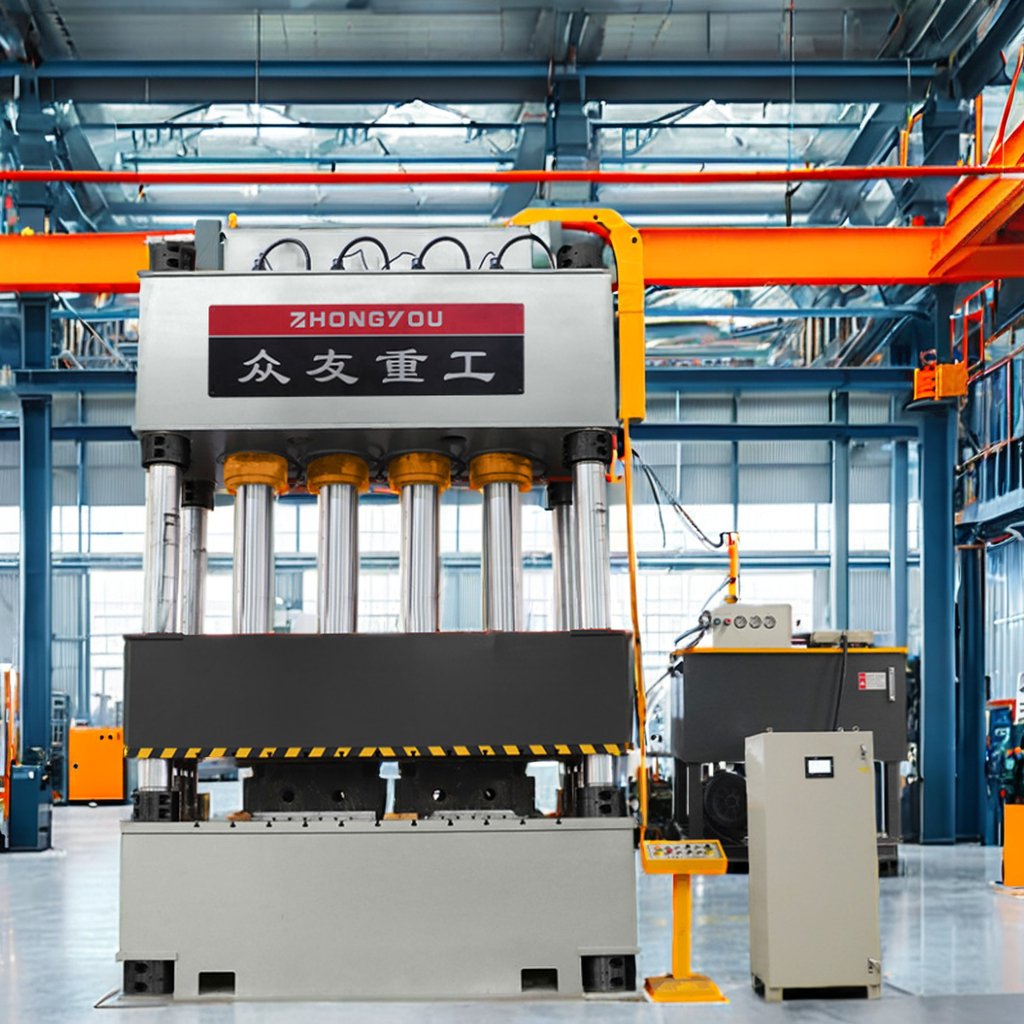

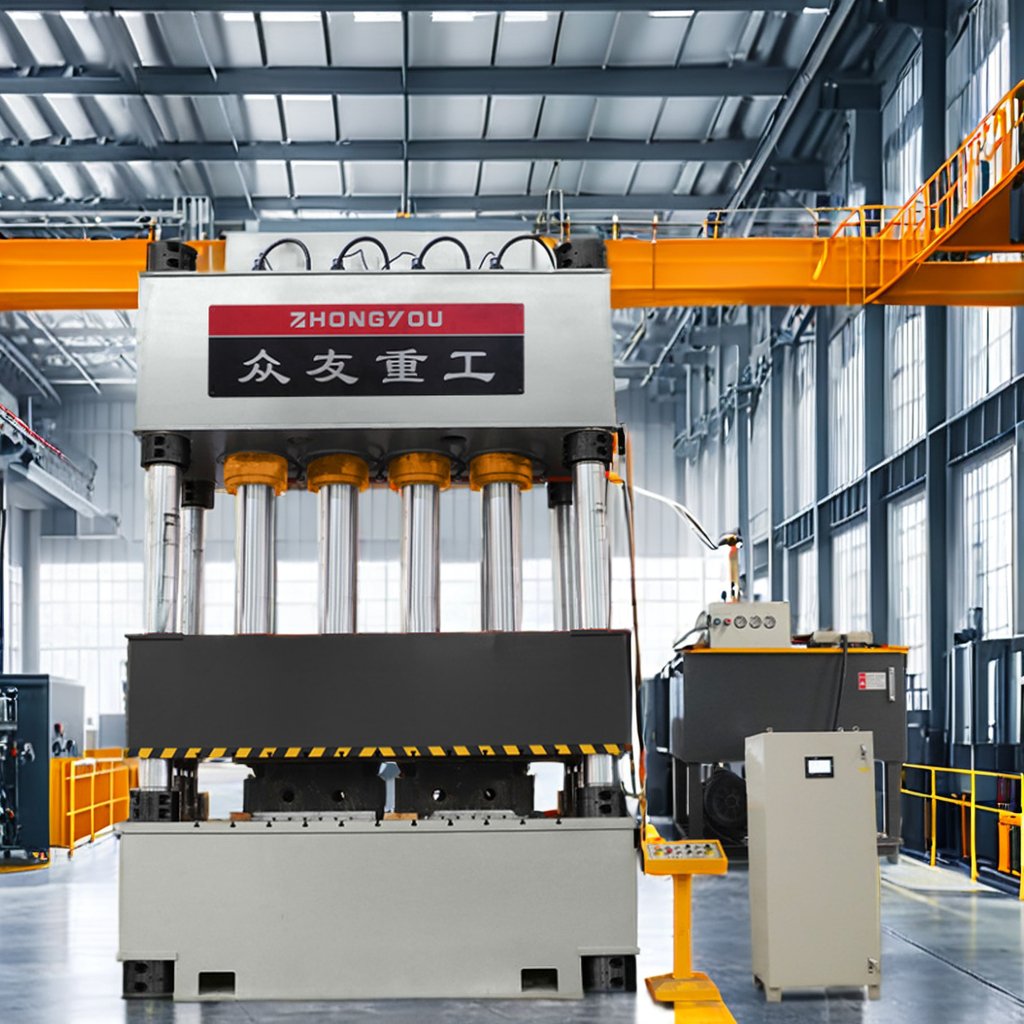

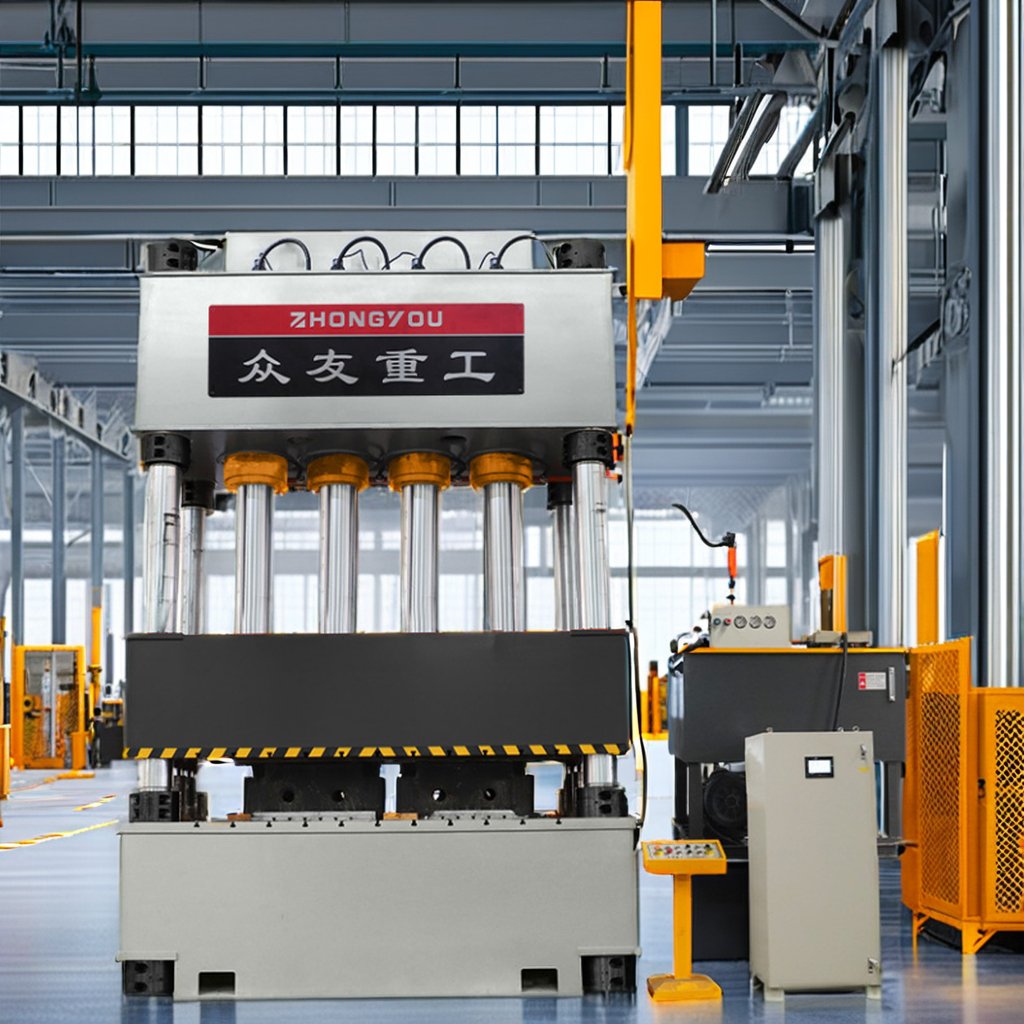

Sawdust Pallet Hydraulic Press” is a special equipment specially used to press sawdust (wood chips, agricultural and forestry wastes) into pallet-like products through hydraulic pressure after mixing with adhesive, which belongs to biomass material molding equipment. Its core function is to compress and mold the loose sawdust raw materials under high pressure to form a pallet with certain strength, load-bearing capacity and stable structure, which can be used to replace the traditional wooden pallet for logistics packaging, warehousing turnover and other fields. This equipment is the heart of the sawdust pallet production line, which determines the density, load-bearing capacity, dimensional accuracy and production efficiency of the pallet.
I. Raw material preparation Choose suitable raw materials, such as wood shavings, plant straw and so on. Preliminary processing of raw materials, including cutting, chipping and other steps for subsequent crushing and mixing.
2, crushing and mixing The preliminary processed raw materials are crushed to the appropriate particle size and automatically proportioned for transfer as required. Mixing of the proportioned raw materials with adhesives. The mixing process should ensure that the adhesive is evenly distributed in the raw material to improve the strength and stability of the pallet.
3, drying and cooling The mixed raw materials are dried at high temperature to reduce their moisture content to ensure the stability and quality of the pallet in the moulding process. After drying, the raw material should be cooled for subsequent moulding operations.
4.Moulding The dried and cooled mix is conveyed to the laying machine in set quantities. The spreader spreads the mix evenly in the mould in preparation for moulding. A hydraulic press for wood chip pallets is used to apply high temperature and pressure to the mix in the mould. The hydraulic press provides a strong compressive force that binds and cures the mix in the mould. After moulding, the pallet is automatically removed from the mould.
Molded pallet hot press is a new type of molded pallet production equipment, the use of hot pressing process of one-time molding, pallet hydraulic press has the advantages of high efficiency, one-time molding, material saving, high strength, environmental protection and energy saving. Depending on the size of the pressed pallet flower pattern, can be configured with different molds, specific can consult customer service.
