A wood chip press pallet machine is a specialized piece […]
| Dimensions: | 1200 x 1000 x 150mm |
| Weight Capacity: | 1500 kg (static) |
| Material: | Compressed Wood Chips |
| Color: | Natural Wood |
A wood chip press pallet machine is a specialized piece of equipment that uses plant fibers such as wood chips and straw as raw materials to produce pallets through a high-temperature, high-pressure molding process. It typically consists of core components such as a feeding system, a crusher, a mixer, a press, and a dryer. Among these, the press is the core equipment, responsible for molding the mixed raw materials under high temperature and pressure.
High Efficiency and Energy Savings: The wood chip press pallet machine employs advanced hydraulic systems and hot-pressing technology to achieve highly efficient and energy-saving production. For example, a 1,250-ton wood chip press pallet hydraulic press can rapidly pressurize to the required level within 35 seconds, maintain pressure for curing for approximately 7 to 10 minutes, and produce 150–240 pallets per day.
High Degree of Automation: The equipment is equipped with a PLC-based fully automatic control system, enabling automated operations throughout the entire process—including feeding, pressing, demolding, and palletizing—which reduces labor intensity and improves production efficiency.
Easy Mold Replacement: The wood chip press pallet machine can be customized with molds of different specifications according to customer needs. Mold replacement is convenient, allowing for the production of pallet products in a variety of sizes.
Eco-friendly and durable: The equipment uses eco-friendly binders, ensuring no release of harmful substances such as formaldehyde during production. Additionally, the molded pallets feature high density, high strength, wear resistance, and corrosion resistance, resulting in a long service life.
I. Raw material preparation Choose suitable raw materials, such as wood shavings, plant straw and so on. Preliminary processing of raw materials, including cutting, chipping and other steps for subsequent crushing and mixing.
2, crushing and mixing The preliminary processed raw materials are crushed to the appropriate particle size and automatically proportioned for transfer as required. Mixing of the proportioned raw materials with adhesives. The mixing process should ensure that the adhesive is evenly distributed in the raw material to improve the strength and stability of the pallet.
3, drying and cooling The mixed raw materials are dried at high temperature to reduce their moisture content to ensure the stability and quality of the pallet in the moulding process. After drying, the raw material should be cooled for subsequent moulding operations.
4.Moulding The dried and cooled mix is conveyed to the laying machine in set quantities. The spreader spreads the mix evenly in the mould in preparation for moulding. A hydraulic press for wood chip pallets is used to apply high temperature and pressure to the mix in the mould. The hydraulic press provides a strong compressive force that binds and cures the mix in the mould. After moulding, the pallet is automatically removed from the mould.

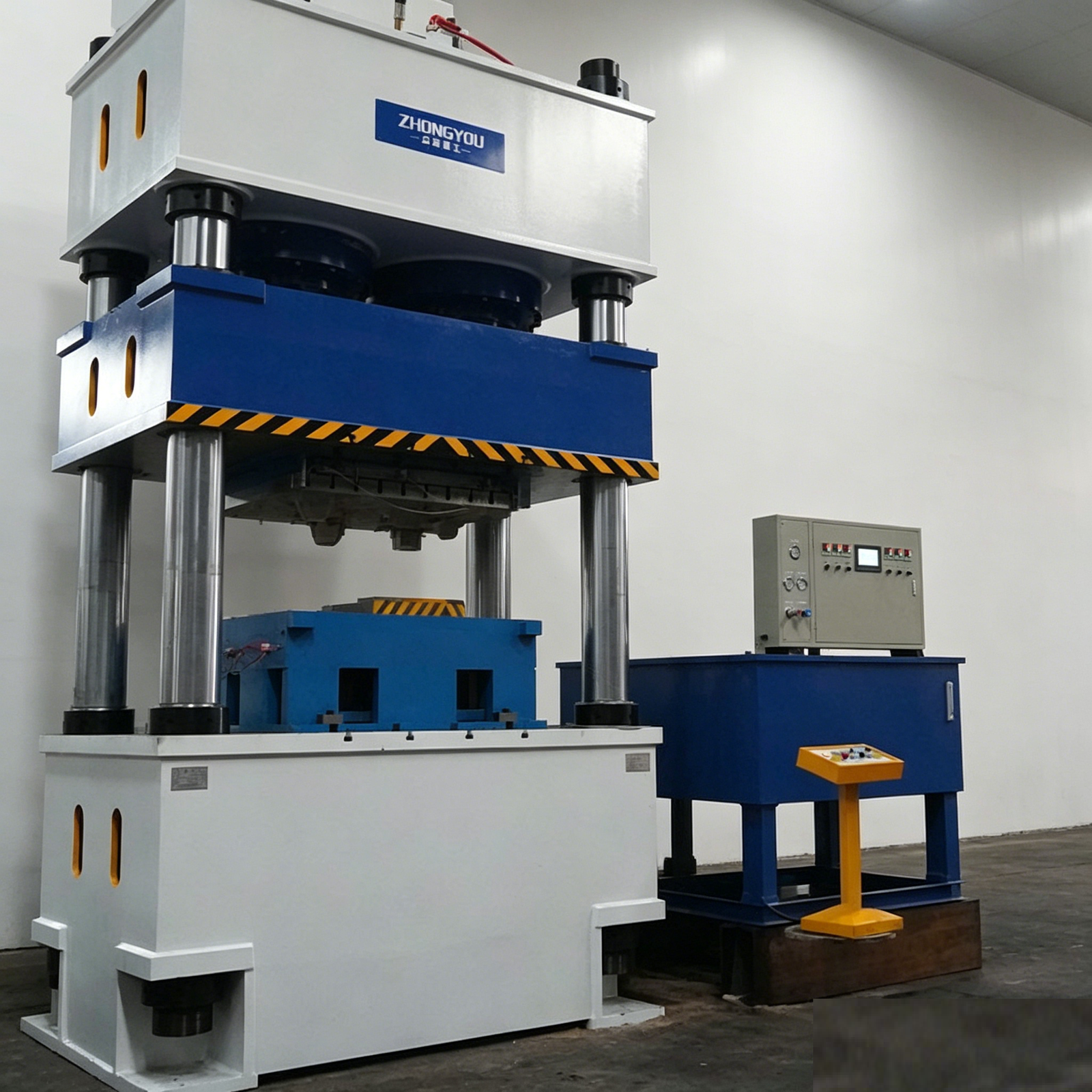

Molded pallet hot press is a new type of molded pallet production equipment, the use of hot pressing process of one-time molding, pallet hydraulic press has the advantages of high efficiency, one-time molding, material saving, high strength, environmental protection and energy saving. Depending on the size of the pressed pallet flower pattern, can be configured with different molds, specific can consult customer service.
