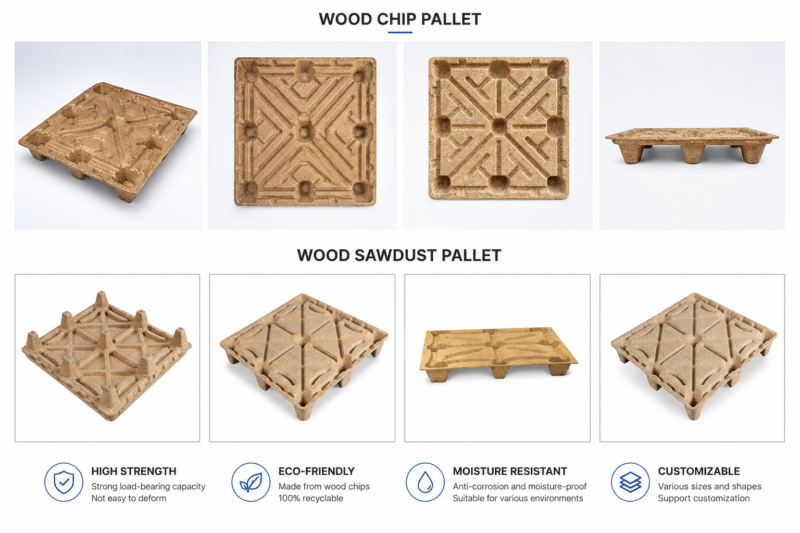

The 1,500-ton wood chip pallet hydraulic press is a spe […]
| Dimensions: | 1200 x 1000 x 150mm |
| Weight Capacity: | 1500 kg (static) |
| Material: | Compressed Wood Chips |
| Color: | Natural Wood |
The 1,500-ton wood chip pallet hydraulic press is a specialized piece of equipment designed to convert recycled wood chips (such as shavings, sawdust, and wood flour) into fumigation-free pallets through high-temperature, high-pressure hot pressing. With a nominal pressure of 15,000 kN (approximately 1,500 tons), it is classified as a medium-to-large-scale hot-pressing machine.
Export Packaging: This is the largest market for wood chip pallets. Countries in Europe, the United States, Japan, and South Korea have very strict quarantine requirements for wooden packaging. Since wood chip pallets are naturally fumigation-free, they are the best alternative to traditional wooden pallets. A standard container (20-foot container) typically requires 8 to 12 pallets; replacing all wooden pallets with wood chip pallets can save on fumigation costs and reduce wood consumption.
Logistics and Warehousing: E-commerce warehouses, express sorting centers, and similar facilities require large quantities of standardized pallets. Wood chip pallets are cost-effective and customizable, making them an ideal solution.
Building Materials Packaging: For packaging building materials such as tiles, stone, and pipes, the load-bearing capacity of wood chip pallets is more than sufficient.
Agricultural Sector: Packaging and transportation of agricultural supplies such as fertilizers, seeds, and pesticides.
Food Industry: Wood chip pallets bonded with MDI adhesive are non-toxic and odorless, making them suitable for food-grade packaging.
I. Raw material preparation Choose suitable raw materials, such as wood shavings, plant straw and so on. Preliminary processing of raw materials, including cutting, chipping and other steps for subsequent crushing and mixing.
2, crushing and mixing The preliminary processed raw materials are crushed to the appropriate particle size and automatically proportioned for transfer as required. Mixing of the proportioned raw materials with adhesives. The mixing process should ensure that the adhesive is evenly distributed in the raw material to improve the strength and stability of the pallet.
3, drying and cooling The mixed raw materials are dried at high temperature to reduce their moisture content to ensure the stability and quality of the pallet in the moulding process. After drying, the raw material should be cooled for subsequent moulding operations.
4.Moulding The dried and cooled mix is conveyed to the laying machine in set quantities. The spreader spreads the mix evenly in the mould in preparation for moulding. A hydraulic press for wood chip pallets is used to apply high temperature and pressure to the mix in the mould. The hydraulic press provides a strong compressive force that binds and cures the mix in the mould. After moulding, the pallet is automatically removed from the mould.
Molded pallet hot press is a new type of molded pallet production equipment, the use of hot pressing process of one-time molding, pallet hydraulic press has the advantages of high efficiency, one-time molding, material saving, high strength, environmental protection and energy saving. Depending on the size of the pressed pallet flower pattern, can be configured with different molds, specific can consult customer service.
