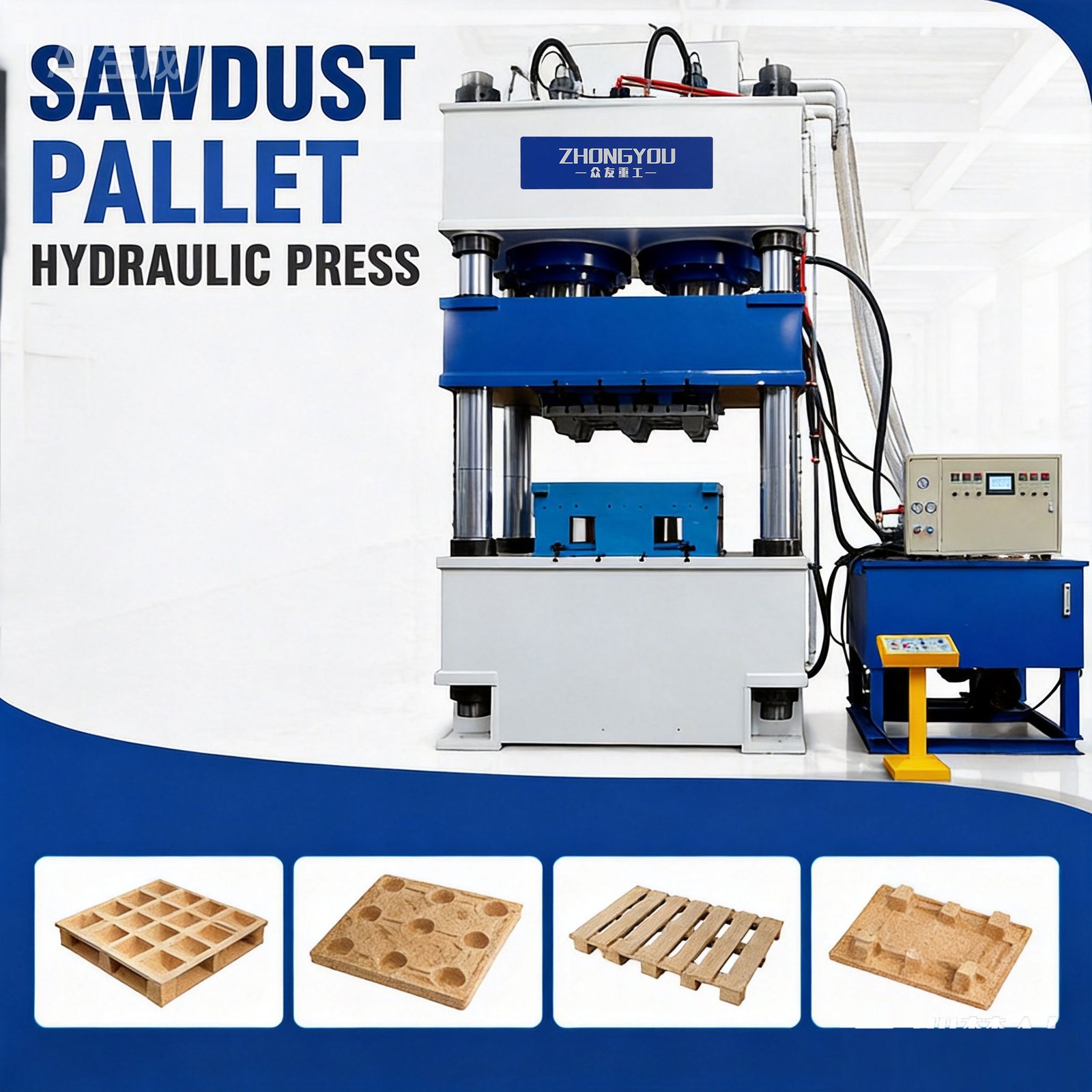

Wood chip pallet hydraulic press, specifically designed […]
| Dimensions: | 1200 x 1000 x 150mm |
| Weight Capacity: | 1500 kg (static) |
| Material: | Compressed Wood Chips |
| Color: | Natural Wood |
Wood chip pallet hydraulic press, specifically designed to compress agricultural and forestry waste—such as wood chips, shavings, straw and waste wood—using eco-friendly adhesive, into solid moulded pallets in a single high-temperature, high-pressure process; this equipment utilises environmentally friendly recycled resources.
Key Features
Eco-friendly and recyclable: Utilises waste materials such as wood shavings and straw, replacing solid wood pallets; fumigation-free and quarantine-free, compliant with European and American import standards.
Low cost: Inexpensive raw materials and automated production.
Durable and stable: Four-column/frame structure resists off-centre loading and minimises deformation; servo system saves 30% energy and operates quietly.
Applications
Raw Materials: Wood shavings, wood chips, straw, sugarcane bagasse, coconut husks, waste wood and other plant fibres.
Products: Standard pallets such as 1200×1000mm and 1100×1100mm; cross-type, T-type and nine-cornered designs.
Industries: Logistics and warehousing, import/export packaging, food and pharmaceuticals, chemicals, automotive parts, and agriculture.
I. Raw material preparation Choose suitable raw materials, such as wood shavings, plant straw and so on. Preliminary processing of raw materials, including cutting, chipping and other steps for subsequent crushing and mixing.
2, crushing and mixing The preliminary processed raw materials are crushed to the appropriate particle size and automatically proportioned for transfer as required. Mixing of the proportioned raw materials with adhesives. The mixing process should ensure that the adhesive is evenly distributed in the raw material to improve the strength and stability of the pallet.
3, drying and cooling The mixed raw materials are dried at high temperature to reduce their moisture content to ensure the stability and quality of the pallet in the moulding process. After drying, the raw material should be cooled for subsequent moulding operations.
4.Moulding The dried and cooled mix is conveyed to the laying machine in set quantities. The spreader spreads the mix evenly in the mould in preparation for moulding. A hydraulic press for wood chip pallets is used to apply high temperature and pressure to the mix in the mould. The hydraulic press provides a strong compressive force that binds and cures the mix in the mould. After moulding, the pallet is automatically removed from the mould.
Molded pallet hot press is a new type of molded pallet production equipment, the use of hot pressing process of one-time molding, pallet hydraulic press has the advantages of high efficiency, one-time molding, material saving, high strength, environmental protection and energy saving. Depending on the size of the pressed pallet flower pattern, can be configured with different molds, specific can consult customer service.
